Pipe Clamps
Leading Manufacturers, Exporters and Wholesaler of External Clamps, Internal Clamps, Online Leak Repair Clamp, Pipe Leak Repair Clamps, Split Sleeve Clamp and Tee Fittings from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Warranty | 1 Year |
| Material | Metal |
| Surface Finishing | Polished |
| Size | Standard |
| Usage | Pipe Fittings |
| Packaging Type | Packet |
Features:
- Very easy to use.
- Manual Operation.
- Precision fitted to the proper specifications to ensure proper alignment and quick clamping with a
- convenient hand lever for quick line-up of the pipe.
- "No-Tack" model have an arched cross bar design which allows for 360 degree continuous welding
- without clamp removal.
- Available in sizes from 4" to above.
| Business Type | Manufacturer, Exporter, Supplier |
| Size | Available in Different Size |
| Material | Metal |
| Class | Heavy Duty |
| Surface Finishing | Polished |
| Packaging Type | Carton Box |
| Made in | India |

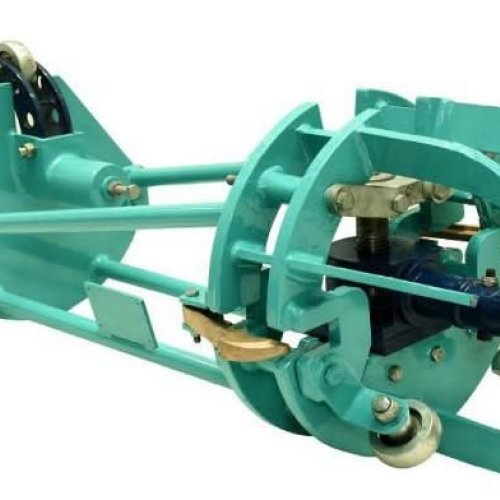

Features:
- Quick reliable alternative to External Line-up Clamps.
- Quick Line-up for continuous Welding of Pipes
- Screw Jack type mechanism to have adequate alignment
- Toggle action puts maximum power on pipe
- “Gap” is unobstructed for full stringer bead
- It is designed for all diameter and wall thickness of pipes
- Heavy duty jack box puts more power on the pipe with less operator effort
- IMC is available in 6” to 48” Pipes
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Metal |
| Type | Wall Mounted |
| Use for | Pipe Fittings |
| Specialities | Optimum Durability |
| Surface Finishing | Coated |
| Packaging Type | Corrugated Boxes |
| Business Type | Manufacturer, Exporter, Supplier |
| Warranty | 1 Year |
| Shape | Round |
| Technics | Hot Dip Galvanized |
| Material | Metal |
| Surface Finishing | Polished |
| Usage | Connect Pipe Flange |
| Packaging Type | Carton Box |
| ANSI Pressure Classes | 300#, 400#, 600#, 900#, and 1500# |
Design Standards and Specifications
- ANSI Pressure classes 300#-1500#
- Design based on API 6H. Design calculation ASME Sec. VIII Div. I
- Body materials A516 Gr. 70, ASTM A105
- PTFE coated bolts and nuts, bolt material A193 Gr. B7 and nut material A194 Gr. 2H
- Standard coating yellow epoxy 100 microns
- Gaskets (H) NBR or Viton
- Weldable option is available with heat insulating gaskets
- Double row sealing is available on request
- Sacrificial anodes can be installed on the sleeves for long term cathodic protection
- Non-standard lengths are available on request
- Full MTC document will be supplied with the order
Material
- Material: ASTM A 516 Gr.70 / ASTM A 105
- Fasteners: ASTM-A-193-B7 & ASTM-A-194-2H
- Seal: Buna “N‟
- Paint: Epoxy Coating Yellow 100 Microns
- Vent Port + Plug: Yes Lifting Lug (8” & above)
- Hinge Assembly: (8” & above) Yes
- Design Temperature: 65ºC N.D.T.
- 100% RT Butt Weld - 100% U.T. of vent plug welds. (Fillet)
- 100% MPI of Hinge welds. (Fillet)
- Certification: EN 10204 3.1
- Design Calculation: ASME Sec. VIII Div. I
| Business Type | Manufacturer, Exporter, Supplier |
| Automatic Grade | Manual |
| Material | Metal |
| Finishing | Polished |
| Packaging Type | Carton Box |
| Warranty | 1 Year |
| Speciality | Easy To Fit, Perfect Shape |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Tee Fittings |
| Brand Name | NIK-SAN |
| Material | Metal |
| Diameter | 2" to 48" |
| Shape | Tee Shape |
| Thickness | 20-40mm |
| Certification | TPI |
| Application | Industrial |
| Color | Grey Brown |
| Port | Anywhere from India |
| Payment Terms | T/T |
| Delivery Time | 2 Weeks |
| Packaging Details | STD |
Hot Tap Tee Split Tee / Hot Tap Fittings / Line Stop Fittings
ASTM A 516 Gr.70 / SA 537 CL-1
